Charging System Solutions for Inland River New Energy Vessels

1. AC/DC Charging System Solution for Inland Rivers with Large Water Level Drop  (With Landing Stage)

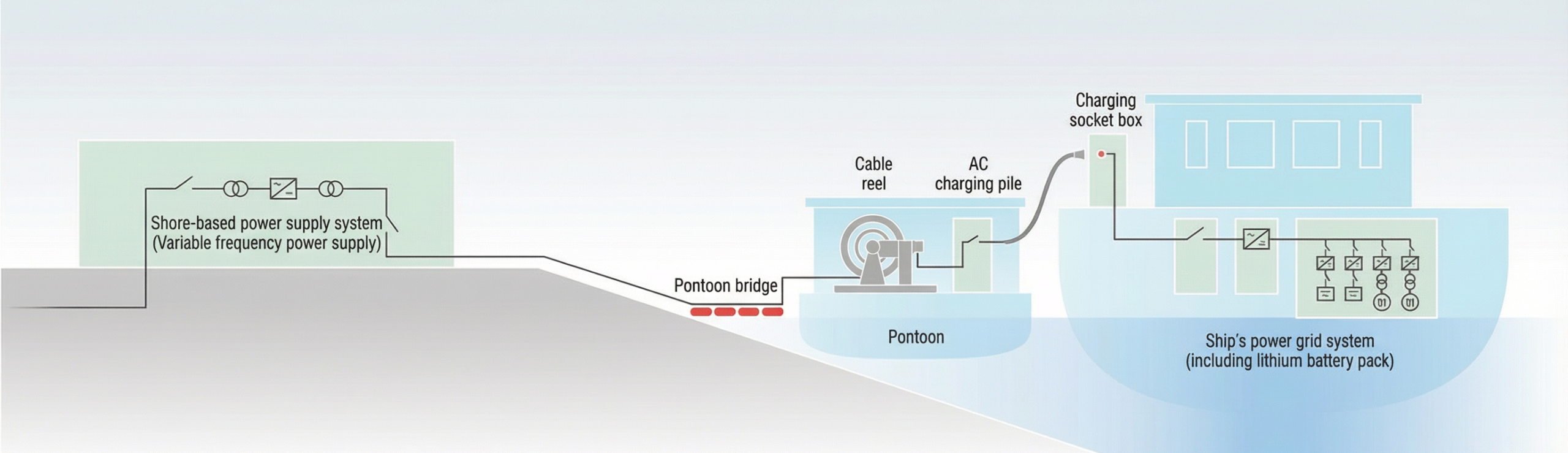

(1) Primarily for inland river scenarios, this AC charging system includes AC charging piles, landing stages, floating bridges, cable reels, and other equipment. It is ideal for areas with significant water level fluctuations and berthing points far from the shore, applicable to inland electric cargo ships and scenic spot cruise ships. The vessel must be equipped with AC/DC rectification equipment.

(2) Designed for inland river environments, this DC charging system comprises DC charging piles, landing stages, floating bridges, cable reels, and related devices. It suits locations with large water level drops and berthing points distant from the shore, and is applicable to inland electric cargo ships and scenic cruise vessels.

2. AC/DC Charging System Solution for Inland Rivers with Large Water Level Drop (Without Landing Stage)

(1) This AC charging system for inland river use is equipped with AC charging piles, pulleys, cable reels, etc. It is suitable for areas with substantial water level variations, berthing points far from the shore, and flat embankments, and is applicable to inland electric cargo ships and scenic cruise ships. The vessel needs to be fitted with AC/DC equipment.

(2) For inland river applications, this DC charging system includes DC charging piles, pulleys, cable reels, and other components. It is intended for regions with large water level drops, berthing points far from the shore, and flat embankments, applicable to inland electric cargo ships and scenic spot cruise vessels.

3. AC/DC Charging System Solution for Inland Rivers with Vertical Embankments and Large Water Level Drop

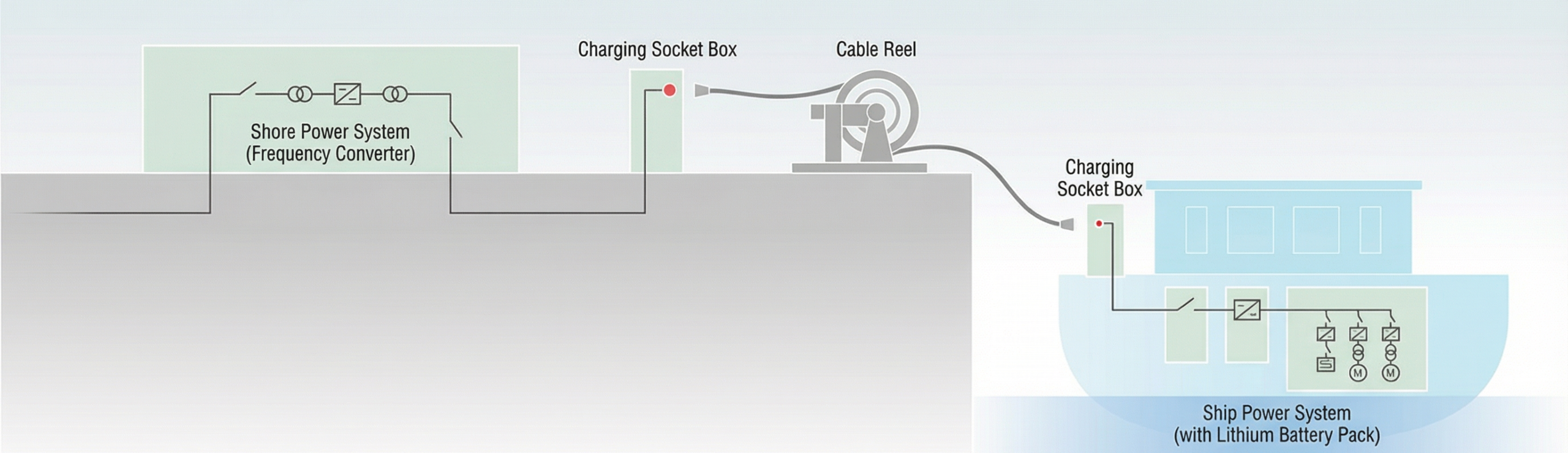

(1) This AC charging system for inland river scenarios is composed of charging socket boxes, cable reels, and other devices. It is suitable for areas with large water level fluctuations and vertical embankment berthing points (e.g., the Three Gorges Reservoir Area), and is applicable to inland electric cargo ships and scenic cruise ships. The vessel must be equipped with AC/DC equipment.

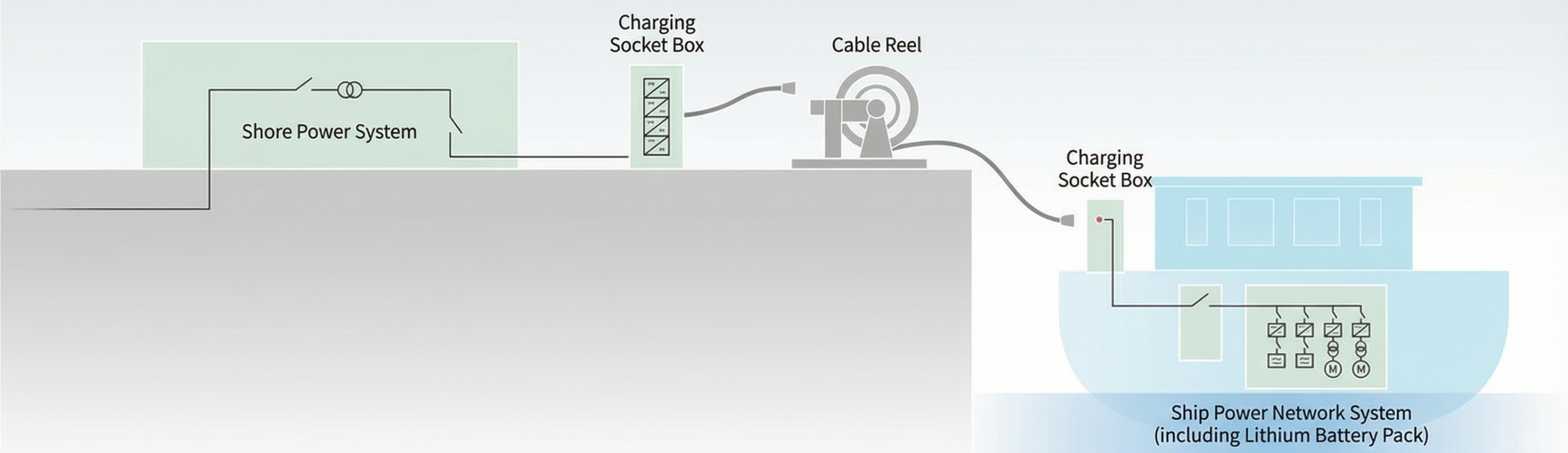

(2) Designed for inland river settings, this DC charging system includes DC charging piles, cable reels, and related gear. It is applicable to regions with large water level drops and vertical embankment berthing points (such as the Three Gorges Reservoir Area), suitable for inland electric cargo ships and scenic spot cruise vessels.
